Monitoring Kafka Partitions

Kafka partitions form the backbone of Apache Kafka’s scalability and fault-tolerance architecture. Monitoring Kafka partitions ensures that data is processed efficiently, offsets are managed correctly, and partition replicas remain synchronized. Without robust partition monitoring, you risk encountering lags, unbalanced partitions, or under-replicated partitions that can disrupt your Kafka-based applications.

This guide explains how to monitor Kafka partitions, highlights critical metrics to track, and introduces tools and best practices to ensure the smooth operation of your Kafka cluster.

TL;DR

• Kafka partition monitoring involves tracking key metrics like offset lag, leader election, and replica synchronization.
• Tools like Kafka Manager, Prometheus, and Grafana provide actionable insights into partition health.
• Balance partitions and monitor consumer lag to ensure fault tolerance and high throughput.

Understanding Kafka Partitions

Kafka partitions are subsets of a topic that allow Kafka to scale horizontally. Each partition is an ordered, immutable sequence of records, and consumers read records from partitions independently.

• Leader Partition: Each partition has a leader broker responsible for handling all read and write requests.
• Replicas: Kafka maintains replicas of partitions across brokers to ensure fault tolerance.
• Offsets: Kafka assigns a unique offset to every record within a partition, enabling precise record tracking.

Monitoring Kafka partitions ensures data reliability and cluster performance.

Key Metrics for Kafka Partition Monitoring

1. Consumer Lag

Consumer lag indicates the number of messages a consumer has yet to process relative to the latest offset in a partition.

• Why It Matters: High lag suggests slow consumer processing or insufficient consumer capacity.
• How to Measure: Use the kafka-consumer-groups.sh CLI tool:

kafka-consumer-groups.sh --bootstrap-server localhost:9092 --describe --group <consumer_group>

Example Output:

Read also: Describe Kafka Consumer Groups – Command and Steps

2. Partition Leadership

Monitor which brokers serve as leaders for partitions. Leadership imbalances can result in uneven workload distribution.

• Why It Matters: A single broker leading too many partitions may experience performance bottlenecks.

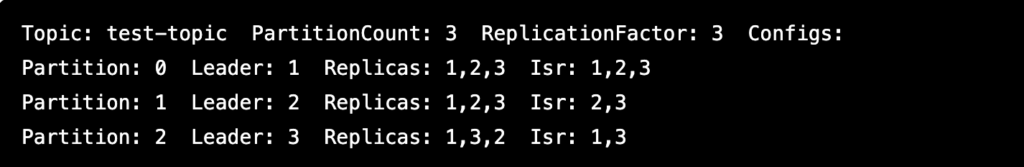

Command to Check Leadership:

kafka-topics.sh --describe --topic <topic_name> --bootstrap-server localhost:9092

Example Output:

3. Under-Replicated Partitions

An under-replicated partition occurs when one or more replicas are out of sync with the leader.

• Why It Matters: Increases the risk of data loss if the leader fails.
• How to Measure: Monitor the UnderReplicatedPartitions metric via Kafka’s JMX metrics or tools like Prometheus.

4. Partition Size

Track the size of each partition to ensure even data distribution. Uneven partition sizes may indicate improper partitioning logic or imbalanced workloads.

How to Measure:
Use the Kafka log.dirs directory to view partition sizes directly on disk.

5. ISR (In-Sync Replicas)

In-Sync Replicas (ISR) are replicas that have fully caught up with the leader’s log. Monitor ISR to detect replica lag.

• Why It Matters: Fewer ISR than the replication factor signals potential synchronization issues.
• Command to Check ISR:

kafka-topics.sh --describe --bootstrap-server localhost:9092

Tools for Kafka Partition Monitoring

1. Kafka Manager

afka Manager is a graphical interface for monitoring Kafka clusters, partitions, and consumers.

• Key Features:
  • View partition leaders and replicas.
  • Monitor consumer lag in real time.
  • Rebalance partitions easily.

Installation:
Follow the instructions at Kafka Manager GitHub Repository.

2. Prometheus and Grafana

Prometheus collects Kafka metrics, and Grafana visualizes them. This combination is widely used for monitoring Kafka partitions.

Steps:

1. Configure Kafka JMX Exporter to expose metrics.
2. Integrate Prometheus to scrape metrics.
3. Create Grafana dashboards for visualization.

Example Metrics to Monitor:

• kafka_server_ReplicaManager_UnderReplicatedPartitions
• kafka_server_ReplicaFetcherManager_BytesPerSec

3. Confluent Control Center

Confluent Control Center offers enterprise-grade Kafka monitoring with an intuitive interface.

• Features:
  • Monitor consumer lag and partition throughput.
  • Set alerts for under-replicated partitions.
  • View partition leadership and replica states.

Key points for Kafka Partition Monitoring

Distribute Partition Leadership:
Balance leadership across brokers to prevent bottlenecks.

Automate Partition Rebalancing:
Use tools like the Kafka Rebalance CLI to redistribute partitions when adding brokers.

Monitor Partition Lag Regularly:
Set alerts for high lag values to detect slow consumers early.

Ensure Even Partitioning:
Use meaningful keys in your partitioning logic to avoid skewed data distribution.

Common Issues in Kafka Partition Monitoring

High Consumer Lag:

• Cause: Slow consumer processing or network latency.
• Solution: Scale the consumer group horizontally or optimize processing logic.

Under-Replicated Partitions:

• Cause: Slow or failed replicas.
• Solution: Investigate broker health and increase replication factor if needed.

Imbalanced Leadership:

• Cause: Partition leadership concentrated on a single broker.
• Solution: Rebalance leadership using Kafka Manager or CLI tools.

Reference Links

1. Apache Kafka Documentation: Monitoring
2. Kafka GitHub Repository
3. Confluent Control Center
4. Prometheus Exporter for Kafka
5. Grafana Dashboards for Kafka
6. Grafana Kafka Dashboard
